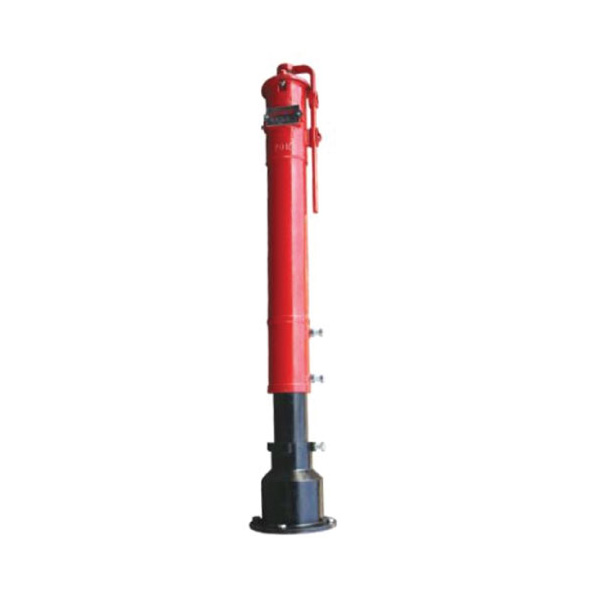

Vertical Indicator Post
- Indicator of “Open” and “Shut” positions
- Used to operate a buried or hidden post indicator valve
- 850mm adjustment range
- Wrench handle fits over a “U” bracket on the barrel, this can be fixed with a padlock to secure the operating wrench to the barrel
- Internally and externally coated in red epoxy RAL3000
- 2.5 m long stem bar is supplied
|
Physical Data |
|||||||
|
Reference |
Dimensions (mm/inch) |
Weight (kg) |
|||||
|
A |
B |
C |
D |
E |
F |
||
|
IVP |
1270 |
1006 |
759.5 |
292 |
190 |
305 |
98.7 |
|
Trench Depth |
|||||||||||
|
Reference |
Unit |
Trench Depth according to Valve Size |
|||||||||
|
DN100/4” |
DN150/6” |
DN200/8” |
DN250/10” |
DN300/12” |
|||||||
|
Min. |
Max. |
Min. |
Max. |
Min. |
Max. |
Min. |
Max. |
Min. |
Max. |
||
|
IVP |
mm |
958 |
1808 |
1073 |
1923 |
1200 |
2050 |
1314 |
2164 |
1448 |
2298 |
|
Materials List |
|||||
|
Item |
Part |
Material |
Specification |
Part Number |
Weight (kg.) |
|
1 |
Hex Nut |
Carbon Steel Zinc Plated |
|
- |
- |
|
2 |
Hex Bolt |
Carbon Steel Zinc Plated |
|
- |
- |
|
3 |
Socket |
Ductile Iron |
A536, 65-45-12 |
IPV-SOCK |
2.42 |
|
4 |
Cotter Pin |
Stainless Steel |
AISI 304 |
IPV-COTT |
0.02 |
|
5 |
Base Flange |
Cast Iron |
ASTM A126 Class B |
IPV-BF |
14.52 |
|
6 |
Hex Bolt |
Carbon Steel Zinc Plated |
|
- |
- |
|
7 |
Hex Nut |
Carbon Steel Zinc Plated |
|
- |
- |
|
8 |
Standpipe |
Carbon Steel |
ASTM A53 |
- |
- |
|
9 |
Stem 1” Square |
Carbon Steel |
AISI 1045 |
IPV-STEM |
12.18 |
|
10 |
Body |
Cast Iron |
ASTM A126 Class B |
|
|
|
11 |
Locking Wrench |
Ductile Iron |
A536, 65-45-12 |
IPV-WREN |
3.56 |
|
12 |
Target Carrier Nut |
Stainless Steel |
AISI 304 |
- |
- |
|
13 |
Hex Bolt |
Carbon Steel Zinc Plated |
|
- |
- |
|
14 |
Hex Nut |
Carbon Steel Zinc Plated |
|
- |
- |
|
15 |
Hex Bolt |
Carbon Steel Zinc Plated |
|
- |
- |
|
16 |
Target - Open |
Cast Aluminium |
|
IPV-OPEN |
0.07 |
|
Target - Shut |
|
IPV-SHUT |
0.07 |
||
|
17 |
Window Class |
Plexiglass |
|
IPV-WIN |
0.03 |
|
18 |
Window Gasket |
PTFE |
|
IPV-WG |
0.01 |
|
19 |
Operating Nut |
Stainless Steel |
AISI 304 |
- |
- |
|
20 |
Top Section |
Cast Iron |
ASTM A126 Class B |
- |
- |
|
21 |
Snap Ring |
|
AISI 1066 |
- |
- |
|
22 |
Plug |
Malleable Iron Galvanized |
|
- |
- |
|
23 |
Square Nut |
Carbon Steel Zinc Plated |
|
- |
- |
|
24 |
Hex Bolt |
Carbon Steel Zinc Plated |
|
- |
- |
|
25 |
Hex Bolt |
Carbon Steel Zinc Plated |
|
- |
- |
|
26 |
Hex Nut |
Carbon Steel Zinc Plated |
|
- |
- |
