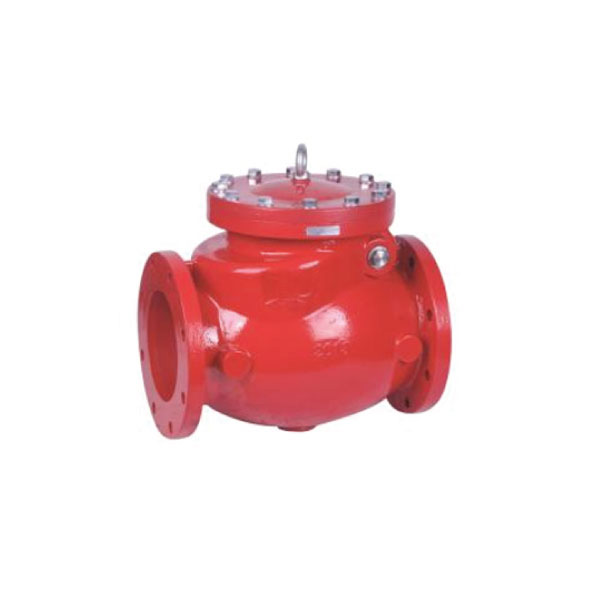

Swing Check Valve - Flanged
Features
- Sizes available (Nominal) :DN50/2”, DN65/21/2”, DN80/3”, DN100/4”, DN150/6”, DN200/8”, DN250/10” and DN300/12”
- Pressure data :
- Working Pressure : 21 bar (300 psi).
- Working Temperature :0.0°C to 80.0°C
- Seat Type :Bronze clapper face ring and valve body seat
- Finish :Fusion bonded epoxy coated interior & exterior
- Connections :Flange diameter and thickness according to ANSI B16.1 Class 125, EN1092-2 PN10 or EN1092-2 PN16
- Specifications :Complies with AWWA C508, clear water¬way design.
