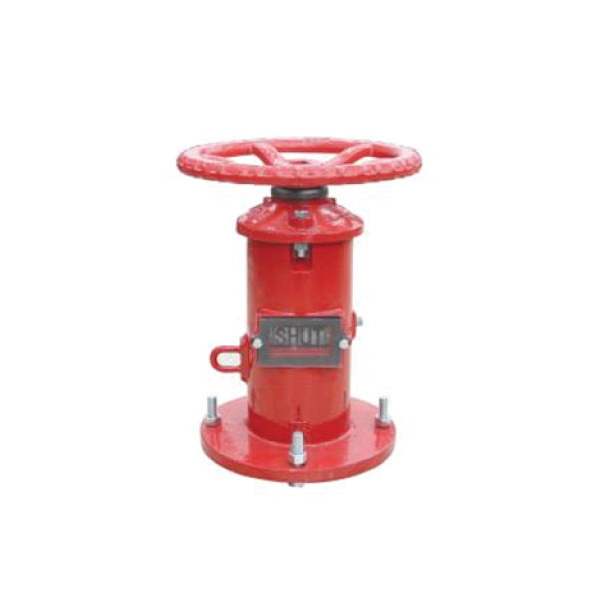

Horizontal Wall Post Indicator
- Indicator of “Open” and “Shut” positions
- Used to operate post indicator valves
- 12” OD post flange for wall mounting
- Handwheel operation
- Internally and externally coated in red epoxy RAL3000
- 1m long stem bar is supplied
|
Physical Data |
||||
|
Reference |
Dimensions (mm) |
Weight (kg) |
||
|
A |
B |
C |
||
|
IVP |
497 |
447 |
356 |
40.5 |
|
Materials List |
|||||
|
Item |
Part |
Material |
Specification |
Part Number |
Weight (kg.) |
|
1 |
Body |
Cast Iron |
ASTM A126 Class B |
- |
- |
|
2 |
Plug |
Malleable Iron - Galvanized |
- |
- |
|
|
3 |
Square Nut |
Carbon Steel - Zinc Plated |
- |
- |
|
|
4 |
Hex Bolt |
Carbon Steel - Zinc Plated |
- |
- |
|
|
5 |
Cover |
Cast Iron |
ASTM A126 Class B |
- |
- |
|
6 |
Hand Wheel |
Ductile Iron |
A536, 65-45-12 |
IPW-HW |
3.62 |
|
7 |
Eye Bolt |
Carbon Steel - Zinc Plated |
- |
- |
|
|
8 |
Washer |
Carbon Steel - Zinc Plated |
- |
- |
|
|
9 |
Snap Ring |
AISI 1066 |
- |
- |
|
|
10 |
Operating Nut |
Stainless Steel |
AISI 304 |
- |
- |
|
11 |
Window Gasket |
PTFE |
IPW-WG |
0.01 |
|
|
12 |
Window Class |
Plexiglass |
IPW-WIN |
0.03 |
|
|
13 |
Target - Open |
Cast Aluminium |
IPW-OPEN |
0.07 |
|
|
Target - Shut |
IPW-SHUT |
0.07 |
|||
|
14 |
Hex Bolt |
Carbon Steel - Zinc Plated |
- |
- |
|
|
15 |
Hex Bolt |
Carbon Steel - Zinc Plated |
- |
- |
|
|
16 |
Hex Nut |
Carbon Steel - Zinc Plated |
- |
- |
|
|
17 |
Target Carrier Nut |
Stainless Steel |
AISI 304 |
- |
- |
|
18 |
Hex Nut |
Carbon Steel - Zinc Plated |
- |
- |
|
|
19 |
Hex Bolt |
Carbon Steel - Zinc Plated |
- |
- |
|
|
20 |
Stem 1” Square |
Carbon Steel |
AISI 1045 |
IPW-STEM |
4.49 |
|
21 |
Cotter Pin |
Stainless Steel |
AISI 304 |
IPW-COTT |
0.02 |
|
22 |
Socket |
Ductile Iron |
A536, 65-45-12 |
- |
- |
