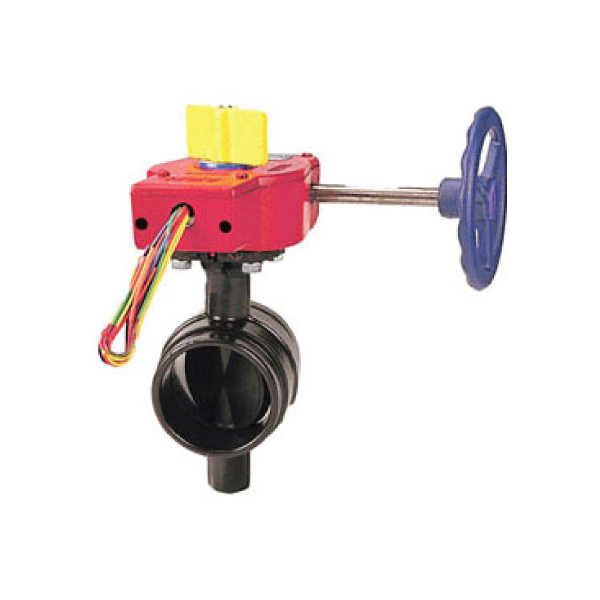

Butterfly Valve (Grooved) with Gear Operator

• Sizes available (Nominal): DN65/21 /2”, DN80/3”, DN100/4”, DN150/6” and DN200/8”.
• Pressure data :
• Working pressure : 20.7 bar (300 psi)
• Max. test pressure : 41.3 bar (600 psi)
• Finish :Fusion bonded Nylon 11 coating
• Connections :Grooved joint dimensions are made in accordance with ANSI/AWWA C606 (Ductile iron pipe and steel pipe) and metric pipe specifications.
• Supervisory Switches :The gearbox is fitted with one internal supervisory position switch and one internal auxiliary switch.

The HPG series butterfly valves come complete with one internal supervisory position switch and one internal auxiliary switch. The supervisory/auxiliary switches operate by a cam connected to the valve stem and are designed to notify in the case of valve closure. Please refer to the relevant installation standard and Authority Having Jurisdiction. The switches will change position and close within two (2) full turns of the hand wheel from the fully open position.
