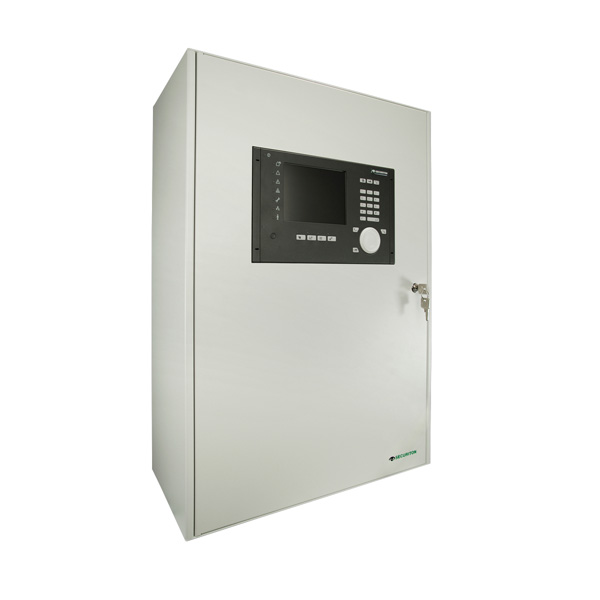

SecuriFire 3000
- Lightning-fast detection of incipient fires
- Fully redundant hardware and software design
- Modular and decentralised architecture
- Up to 16 ring circuits with 3,500 elements per control unit
- Data interfaces to the outside and to higher level systems
- Simple planning, programming and operation
- Highest security standards
The SecuriFire fire alarm system is a modular, decentralised fire alarm system consisting of individual components and can be adapted to individual system requirements. The SecuriFire 3000 fire alarm control panel controls the system components and evaluates the detector data, either centralised or decentralised in the control panels networked in the SecuriLan. The detectors, the wide range of different input/ output modules and the special detectors communicate directly with the control panel via the SecuriLineeXtended. Even already installed Securiton detectors can be integrated into a SecuriFiresystem problem-free. Thanks to the system design, SecuriFire 3000 is also tested and approved as a control panel for multi-zone extinguishing systems (EN 12094-1 compliant).
| Technical data SCP-20XX | |
|---|---|
| 230 VAC +15%/-20% | Mains voltage |
| 47-63 Hz | Frequency |
| 350W | Power consumption max. |
| 7A | Output current |
| 12V/45Ah | Batteries (largest): 2 pieces in series |
| IP 30 | Protection class |
| 0°/+50°C | Ambient temperature |
| 26.3 VDC (+50°C) - 28.3 VDC (0°C) | Output voltage |
| 97mA | Quiescent current (w/o oper. panel, w/o printer) |
| 5-95% | Rel. air humidity: without condensation |
| 670×470×230 mm/23.5kg | Dimensions (H×W×D)/Weight of basic version (without batteries) |
| Technical data SecuriLineeXtended | |
|---|---|
| 250max./Automatic | Number of addresses/Address allocation |
| 3500m | Ring circuit length |
| 531 | Backwards compatibility to series |
| > 300 mA | Short-circuit detection |
| 24 VDC | Rated operating voltage |
| 12 VDC/24 VDC | Rated voltage auxiliary power supply |
| -16 | SecuriLineeXtended |
| < 100sec. | Starting/repairing time |
| Technical data SecuriLan | |
|---|---|
| RS 485, TCP/IP | Bus technology |
| 2500 kbit/s | Data transfer |
| 32 max. | Number of participants on the SecuriLan |
| 16 max./31 max. | Number of centrals/Number of external operating panels |
| 24 VDC | Rated operating voltage |
| Cat 5 UTP RS 485 | Cable (without power supply |
| 1.2 km max. | Length, between 2 participants |
| 62.5/125 µm | Cable (without power supply) |
| 50/125 µm | Multimode/MTRJ |
| 2 km max./10 km max. | Length, Multimode/Length, Singlemode |
| 9/125 µm | Cable (without power supply), Singlemode/LC 2×5 |
| Product summary | |
|---|---|
| B5-SCP3010 | SecuriFire 3000 basic version |
| B5-SCP3020 | SecuriFire 3000 basic version, with built-in operating panel MIC11 |
| B5-SCP3030 | SecuriFire 3000 basic version, with built-in operating panel MIC11 and printer |
| B5-SCP3040 | SecuriFire 3000 basic version, with built-in operating panel MIC11, printer and cut out for EPI devices |
| B6-SCP3050 | SecuriFire 3000 basic version, with built-in operating panel MIC11 main indication and control map, protocol printer and cut-out for MMI device |
