SecuriFire 2000
FeaturesOperation/DescriptionsSpecifications
- Lightning-fast detection of incipient fires
- Modular and decentralised architecture
- Up to 4 addressable loops (totalling 14,000 m) with up to 1,000 elements per system
- Fully redundant software design for permanent availability
- Simple planning and programming
- Backward and forward compatible
- Cost-efficient solutions
- Complies with the highest safety standards
- Interfaces to the outside and to superordinate systems
- Compact design

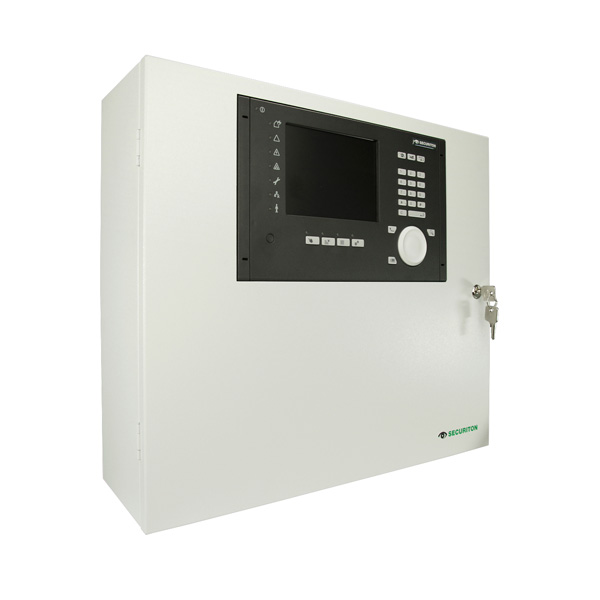

The compact SecuriFire 2000 fire alarm control panel controls the system components and evaluates the detector data, either centralised or decentralised in the control panels networked in the SecuriLan. The detectors, the wide range of different input/output modules and the special detectors communicate directly with the control panel via the SecuriLineeXtended. Even already installed Securiton detectors can be integrated into a SecuriFire system problem-free. Thanks to the system design, SecuriFire 2000 is also tested and approved as a control panel for single-zone extinguishing systems (EN 12094-1 compliant).
| Technical data SCP-20XX | |
|---|---|
| 230 VAC +15%/-20% | Mains voltage |
| 47-63 Hz | Frequency |
| 160W | Power consumption max. |
| 4A | Output current |
| 12V/17Ah | Batteries (largest): 2 pieces in series |
| IP 30 | Protection class |
| -5°/+50°C | Ambient temperature |
| 26.3 VDC (+50°C) - 28.3 VDC (0°C) | Output voltage |
| 74mA | Quiescent current (w/o oper. panel, w/o printer) |
| 5-95% | Rel. air humidity: without condensation |
| 400×445×150 mm/8kg | Dimensions (H×W×D)/Weight of basic version (without batteries) |
| Technical data SecuriLineeXtended | |
|---|---|
| 250max./Automatic | Number of addresses |
| 3500m | Ring circuit length |
| 531 | Backwards compatibility to series |
| > 300 mA | Short-circuit detection |
| 24 VDC | Rated operating voltage |
| -4 | SecuriLineeXtended |
| < 100sec. | Starting/repairing time |
| Technical data SecuriLan | |
|---|---|
| RS 485, TCP/IP | Bus technology |
| 2500 kBit/s | Data transfer |
| 32 max. | Number of participants on the SecuriLan |
| 16 max./31 max. | Number of centrals/Number of external operating panels |
| 24 VDC | Rated operating voltage |
| Cat 5 UTP RS 485 | Cable (without power supply |
| 1.2 km max. | Length, between 2 participants |
| 62.5/125 µm | Cable (without power supply) |
| 50/125 µm | Multimode/MTRJ |
| 2 km max./10 km max. | Length, Multimode/Length, Singlemode |
| 9/125 µm | Cable (without power supply), Singlemode/LC 2×5 |
| Product summary | |
|---|---|
| B6-SCP2010 | SecuriFire 2000 basic version |
| B6-SCP2020 | SecuriFire 2000 basic version, with built-in operating panel MIC11 |
| B6-SCP2030 | SecuriFire 2000 basic version, with built-in operating panel MIC11 and printer |
| B6-SCP2040 | SecuriFire 2000 basic version, with built-in operating panel MIC11, printer and cut-out for EPI devices or Ext. Zone panel |
| B6-SCP2050 | SecuriFire 2000 basic version, with built-in operating panel MIC11 and control map and cut-out for EPI device or one-sector extinguishing display |
