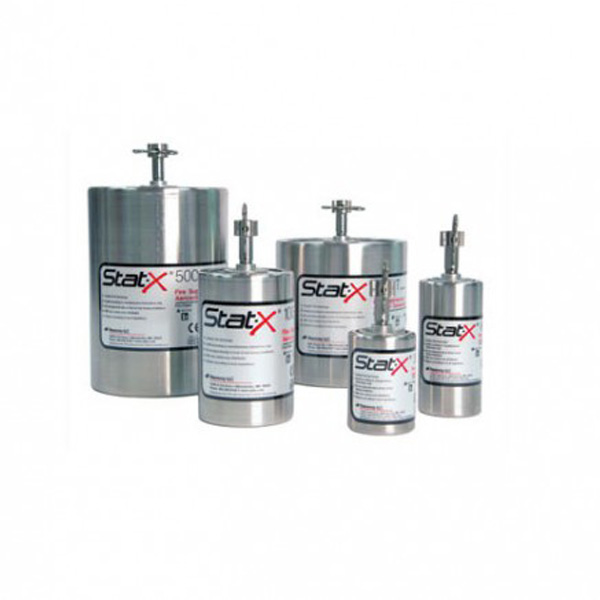

Stat-X Systems: Manual ONLY Units

FeaturesApplicationsOperation/DescriptionsSpecifications
  • Approved for normally occupied spaces
  • Significantly more effective than alternative extinguishing agents
  • Zero ozone depletion, zero atmospheric life, and insignificant global warming potential
  • Ease of installation — no pressure vessels, piping, or expensive installation manpower
  • Very low maintenance
  • Provides reliable, cost effective protection for a wide range of fire hazards
  • No power required — activates thermally or manually
  • Favorably reviewed by EPA for SNAP listing
  • Approved by CSIRO, ECB, MCA, ABS and many more
  • Safe for valuable equipment
  • Post fire clean up — aerosol suspends in air for clean-up and venting after discharge
  • Compact — up to a 90% reduction in space and weight requirements
  • Available in the following sizes (see specifications for more details):
  • — 30 T (30 g aerosol mass)
  • — 60 T and 60 T long (60 g aerosol mass)
  • — 100 T (100 g aerosol mass)
  • — 250 T and 250 MT (250 g aerosol mass)
  • — 500 T (500 g aerosol mass)
  • — 1000 MT (1000 g aerosol mass)

Due to their fast response time, low fire extinguishing concentration, and environmental safety, Stat-X fire suppression systems may be used in critical applications across a wide range of industries. Aerosol generators are suitable for use in:

  • Small boats

In the event of a fire, Stat-X manual generators can be activated manually via a cable pull.

Upon activation, the generators produce an exceptionally effective, ultra-fine, potassium based aerosol. Unlike gaseous systems, Stat-X aerosol generators are very cost effective to install and maintain — as they do not require the pressure vessels, piping or expensive installation costs associated with other extinguishing systems.

Space and weight requirements are minimal and, in many applications, the small size of the Stat-X aerosol generators makes them the only viable option. On an agent weight basis, Stat-X aerosol is ten times more effective than gaseous agent alternatives.

Fire suppression is rapidly achieved through interference between the ultra-fine aerosol particulate and the flame’s free radicals — terminating propagation of the fire.

Stat-X aerosol generators are virtually maintenance free and have a shelf life of over 10 years. This, coupled to their very low installation cost, makes them an extremely cost effective fire protection solution.

Agent Container. The generator housing shall be constructed of exterior and interior stainless steel shells separated by an insulating material. Top and bottom of housing shall be stainless steel. Housing shall be sealed with a non-permeable membrane and shall incorporate a mechanical means to insure rupture of the membrane upon activation. Housing shall be non-pressurized prior to system activation.

Finish. Brushed Stainless Steel.

Aerosol Agent. Aerosol generated shall be potassium based and manufacturer shall provide fifteen (15) minute time weighted average data from an independent United States laboratory demonstrating that the aerosol does not produce (at normal design concentrations harmful levels of CO, CO2, and NOx based on NIOSH standards. Shall have no ozone depletion potential and no global warming potential. Agent shall be approved for commercial sale by the US EPA.

Operation/Storage Parameters:

  • Temperature -40° C to +54° C (-40° F to +130° F)
  • Relative Humidity up to 98% at +35° C (+95° F)

Transportation Classification:

  • Classification Code: 4.1
  • UN Identification #: UN 3178
  • Packaging Group: PGIII
  • Shipping Limitations:
  • — Ground: None
  • — Max. weight per unit packaging — Cargo Air 100 kgs (220 lbs)
  • — Max. weight per unit packaging — Passenger Air 25 kgs (55 lbs)

General Specifications:



Model 30 T 60 T(long) 100 T 250 T 250 MT 500 T 1000 MT

Aerosol Mass:

grams

30 60 100 250 250 500 1000

Weight: kg

(lbs)

.3

(.66)

.49

(1.1)

.827

(1.82)

2.48

(5.47)

1.28

(2.83)

3.43

(7.56)

5.54

(12.20)

Length (with actuator):

mm

(inches)

109

(4.30)

155

(6.10)

152

(6.00)

168

(6.60)

202

(7.95)

218

(8.60)

333

(13.10)

Diameter:

mm

(inches)

51

(2.00)

51

(2.00)

76

(3.00)

127

(5.00)

76

(3.00)

127

(5.00)

127

(5.00)

Discharge Time:(sec) 8.0 8.5 11.5 12.0 18.0 21.0 25.0



Manual Pull Options Horizontal Vertical
Material 316 Stainless 316 Stainless
