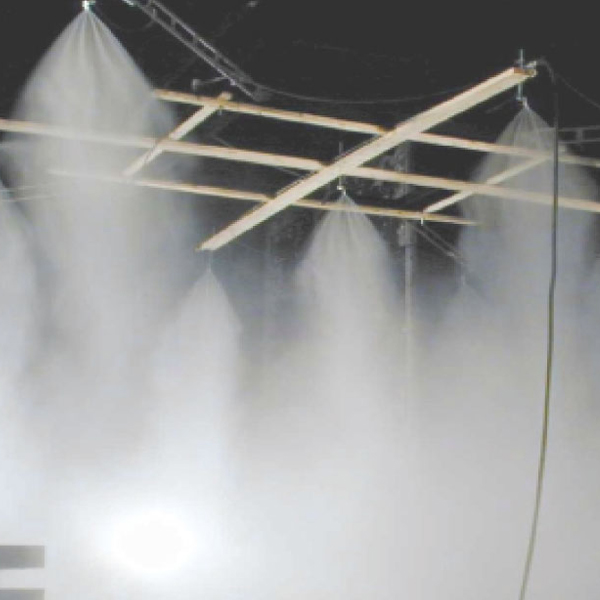

MISTEX Water Mist Fire Protection System – Low Pressure

• Slightly higher water quantity
• Slightly larger diameter pipes
• More nozzles required
• Slightly larger water mist droplets (average 250 microns)
• Galvanised, S/steel, copper or high-density plastic pipe

Medium

• MISTEX is a 6 to 20 bar system
• Droplet size 100 to 350 microns
• Mist generated by water flowing through swirl chambers

FOGEX has been tested in accordance with IMO Guidelines MSC/Circ. 668/728, MSC/Circ. 1165 for use in machinery spaces and cargo pump rooms (upto 4,000m³), IMO MSC/Circ. 913 for local applications and Factory Mutual Research Corporation combustion turbines, machinery spaces, and special hazard machinery spaces for enclosures up to 500m³.
