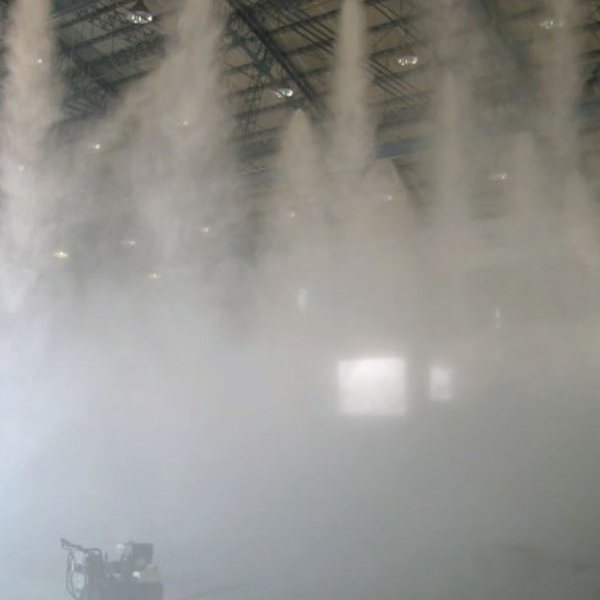

FOGEX® Water Mist Fire Protection System – High Pressure

• Small diameter pipe down to 9mm bore
• Small nozzle fittings 3/8”
• Stainless steel pipe & fittings
• Flow rates per nozzle as low as 3.4 LPM to 22LPM
• Fog-like distribution achieves entrainment in recessed areas
• Minimal water quantity
• Long retention (no need for room sealing)
• Versatility of design (flow quantities,system types, location of water tank)

High-Pressure > 35 bars

• FOGEX is a 100-120 bar system
• Mist generated by water flowing through small orifices
• Droplet size 1 to 100 microns ( average 50 microns )

FOGEX has been tested in accordance with IMO Guidelines MSC/Circ. 668/728, MSC/Circ. 1165 for use in machinery spaces and cargo pump rooms (upto 4,000m³), IMO MSC/Circ. 913 for local applications and Factory Mutual Research Corporation combustion turbines, machinery spaces, and special hazard machinery spaces for enclosures up to 500m³.
