SecuriFire 500
FeaturesOperation/DescriptionsSpecifications
- Lightning-fast detection of incipient fires
- Easy to operate on site and remotely
- Quick and easy to configure and program
- Data transmission using state-of-the-art IP technology
- Interface for connection to the fire services
- VdS approval in compliance with EN 54-2, EN 54-4 and EN 54-13; complies with all Cantonal Fire Insurance Union and SES norms
- Compatible with existing and future generations of detectors

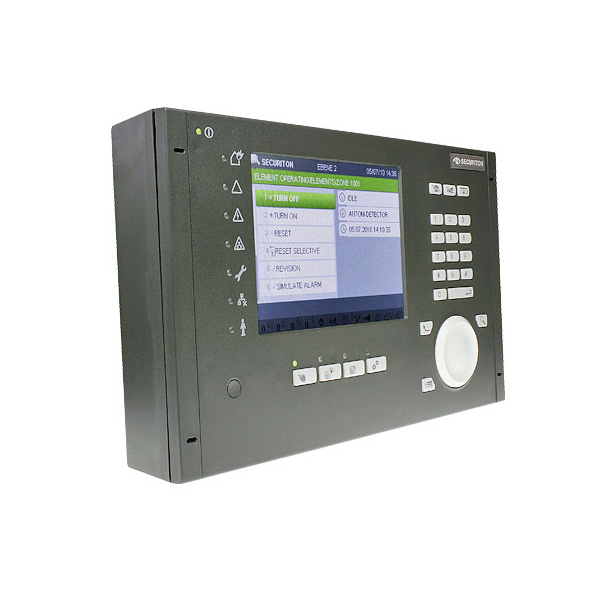

The compact SecuriFire 500 fire alarm control panel controls the system components and evaluates detector data. The detectors, the wide range of different input/output modules, and the special detectors communicate directly with the control panel via the SecuriLineeXtended.
| Technical data SCP 500 | |
|---|---|
| 110/230 VAC +15%/-20% (47-63 Hz) | Mains voltage |
| 75 W | Max. power consumption |
| 2,5 A | Output current |
| 12 V/7 Ah | Batteries (largest): 2 pcs. in series |
| IP 30 | Protection class |
| -5°/+50°C | Ambient temperature |
| 26,3 V DC (+50 °C) - 28,3 V DC (0 °C) | Output voltage |
| 5-95% | Rel. air humidity, without condensation |
| 300 × 360 × 80 | Dimensions (H × W × D) |
| 2,3 kg | Weight of basic version (without batteries) |
| 10 000 | Event memory «events on board» |
| Technical data SecuriLineeXtended | |
|---|---|
| 250max. | Number of addresses |
| 3500m | Addressable loop length |
| Automatic | Address allocation |
| 531 | Backwards compatibility to series |
| > 300 mA | Short-circuit detection |
| 24 VDC | Rated operating voltage |
| Ring/Loop | Type of conveyance |
| Product summary | |
|---|---|
| B7-SCP 520 | SecuriFire 500 with operating panel |
